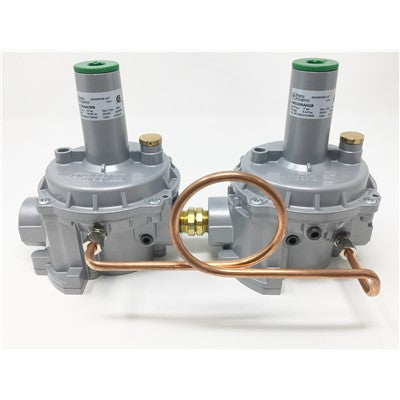

Pietro Fiorentini Regulator F31152 OPD 5PSI OR 10PSI to inches 1"

GOVERNOR DUAL CUT HIGH CAPACITY REGULATOR

FEATURES

• CSA Certified to ANSI Z21.80A2005
• CSA 6.22a-2005 Class I & Class II for Outlet pressures up to 1PSIG

• Integral Vent Limiter no vent line required
• Positive dead-end Lockup
• Inlet and Outlet test ports
• 500 to 1 Turndown
• Worker monitor configuration monitor is set at 70% greater than the worker.

SPECIFICATIONS

• Suitable for use with Natural Gas, LPG, and any non corrosive clean gas
• Inlet pressure: 7w.c. to 5 PSIG
• Outlet pressure : 4w.c. to 1 PSIG
• Temperature range: -40 F to 150 F
• Connections :  1/2" thru 2"
• Maximum Emergency Inlet Exposure Pressure: 80 PSIG

• Suitable for Indoor or Outdoor Installation.
