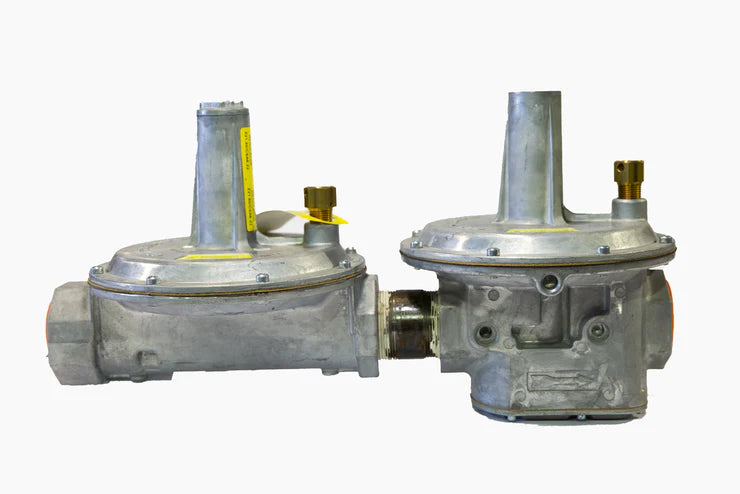

Maxitrol Gas Regulator, 325-9AL210E-20 Line Pressure Regulator with OPD for 5 PSI Piping Systems, 2"

Original price $1,861.00 - Original price $1,861.00
Original price
$1,861.00
$1,861.00 - $1,861.00
Current price $1,861.00

    Brand: Maxitrol
    Model: R325-9AL210E-20
    Gas Type: Natural, manufactured, mixed, liquified petroleum or LP gas-air mixture
    Supplying Pressure: CSA certified up to 5 PSI
    Outlet Pressure Set Point: 7” - 10” w.c.
    Inlet Connection Size: 2"
    Outlet Connection Size: 2"
    Certifications: ANSI Z21.80/CSA 6.22 Line Pressure Regulators

Housed in aluminum, the Maxitrol Gas Line Pressure Regulators are durable and reliable solutions for use on 5 psi piping systems. Located upstream of equipment already fitted with installed appliance regulator systems, the line regulator reduces pressure to a level within an appliance’s acceptable range.

The Maxitrol 325-L Line Series features an over-pressure protection device (OPD) that will automatically limit downstream pressure in the event of a failure. Self-aligning valve with lever action for dead end regulator lockup and includes an optional vent limiter that eliminates the need to run vent piping to an outside location.

To select the correct regulator, consider factors such as the type of gas, the flow rate, pressure range, inlet and outlet connection sizes and your application’s compatibility with the regulator. If you need help selecting the right regulator, your gas regulator experts at Western Water & Gas Products are here to help!
